Name: 457mm x 152mm x 60kg Steel Beam
Brand: K I Metals
SKU: KIM150574
Price: 136.25 GBP
Availability: InStock

457mm x 152mm x 60kg Steel Beam

SKU: KIM150574

457mm x 152mm x 60kg Steel Beam supplied cut to your required length for structural support, lintels, frames and renovation work. ±3 mm cutting tolerance; supplied as-cut and not deburred.

1 Enter Length

(Free Custom Cutting - Minimum length 50 MM)

Require cutting to specific lengths ?

Approximately Weight (in Kg):59.8

Please note: Per drill charge from £4 - £9
Select drill diameter
Drilling Image
Number of Drills per Length When placing your order for drills, it's important to note that the quantity specified applies to each length of the bar. For example, if you require 5 bars and need 4 drills for each, you should select a quantity of 5 for the bars and add 4 drills. This setup will result in a total of 20 drills for all 5 bars. Please be aware that there is a tolerance of ±2 to 3 mm in the dimensions of the drills.

Quantity

£136.25(Incl. VAT) £113.54(Excl. VAT)

Standard Delivery
Estimated Arrival Within 2-3 Working Days
Need it urgent?
Please contact us on 01213283380, we will confirm if we can deliver this in express service.

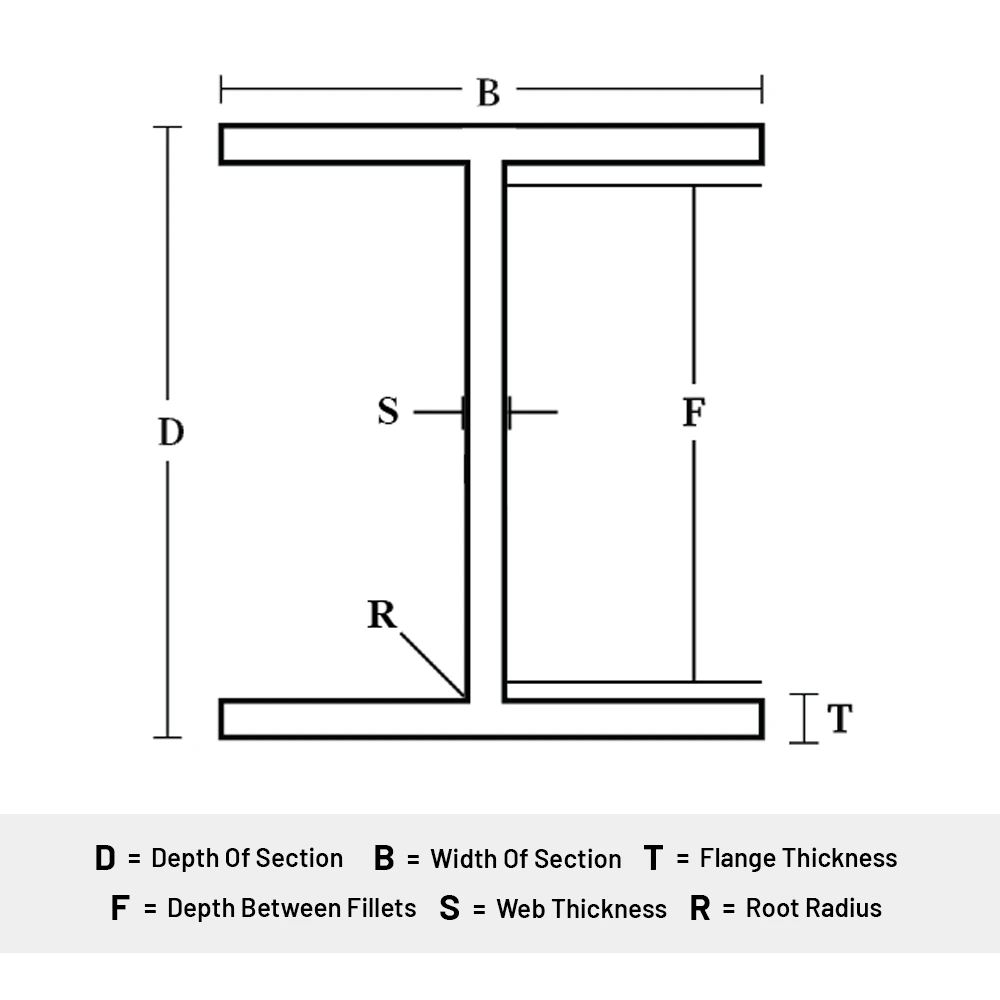

Product Dimension

DDepth D(mm)457

BWidth B(mm)152.9

SWeb S(mm)8.1

TFlange T(mm)13.3

RRoot Radius R(mm)10.2

FDepth Between Fillets F(mm)407.6

Approximately sizes

Please be advised that the sizes, thicknesses, and measurements provided are intended to serve as approximate references and may fluctuate based on our suppliers. We recommend that any specific requirements pertaining to these sizes be confirmed prior to placing an order. While this information is intended for your convenience, it may not be entirely accurate.

Description

457mm x 152mm x 60kg Steel Beam Cut to Size

Our 457mm x 152mm x 60kg Steel Beam is supplied for professional fabrication, construction, maintenance and general engineering. This steel beam is a Universal Beam (UB), commonly referred to as an RSJ, I-beam, I-section, H-beam, girder or steel lintel. Its section is designed to resist bending in load-bearing work.

Material grade: Normally supplied as S355JR to BS EN 10025-2.

Typical applications

Structural openings and load-bearing supports
Building frames and renovation projects
Lintels, goalposts and support structures
Industrial fabrication and civil engineering

Custom cutting and processing

Order cut to your required length. Standard cutting tolerance is ±3 mm. Products are supplied as-cut and are not deburred. Drilling and selected decorative or protective finishes may also be available; submit your drawing or contact K I Metals to discuss your requirements.

Material-grade requirements

If your project requires a specific material grade, please contact K I Metals before placing your order and obtain written confirmation. Telephone or verbal discussions do not constitute confirmation of supply requirements. Written confirmation from K I Metals must be obtained before placing an order where a specific material grade is required.

Surface condition and safety

Mild steel may show mill scale, light surface marks or minor oxidation from storage and handling. Cut metal can have sharp edges and may retain burrs. Wear suitable gloves and eye protection when handling, fabricating or installing this product.
